Definition and Overview
FRP grating molds are tools used to produce FRP gratings. FRP gratings are widely used in chemical, petroleum, electric power, marine engineering, sewage treatment and other fields due to their light weight, high strength and corrosion resistance.
Features of FRP grating molds:
Material: Generally, FRP grating molds are made of high-quality metal materials to ensure their strength and durability.
Design: The design of the mold needs to be precise so that the required grating size and shape can be accurately formed. This includes parameters such as the shape, size and distribution of the openings of the grating.
Surface treatment: In order to make the final product have good appearance quality and easy demolding, the mold surface is usually specially treated, such as polishing or coating with a release agent.
Manufacturing process: The process of making the mold involves precision machining technology to ensure the high precision and long life of the mold.
The production process of FRP grating generally includes steps such as laying reinforcement materials (such as glass fiber), injecting or applying resin, curing, and demolding. By using specially designed molds, each grating can be guaranteed to have consistent quality and performance, while also improving production efficiency and reducing costs.
Manufacturing process - compression molding
Key process: This is the core process that distinguishes it from other FRP gratings (such as pultruded gratings).

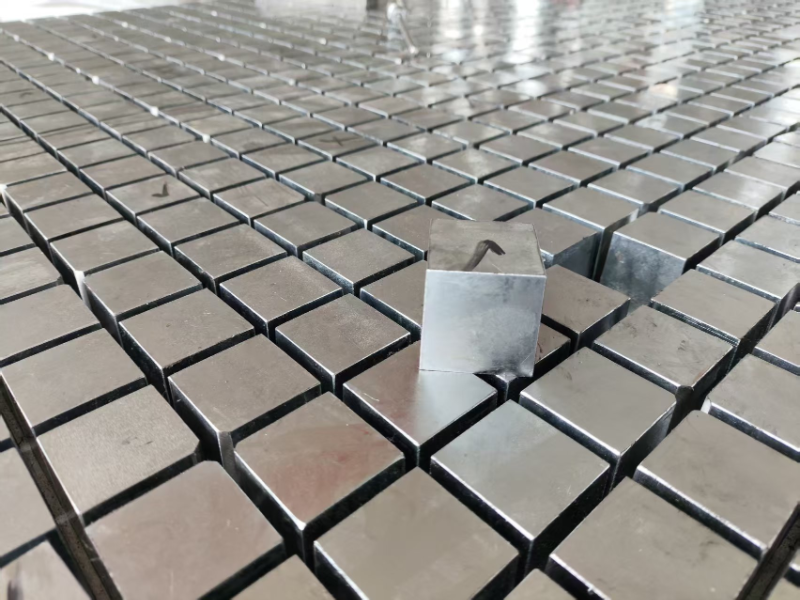

Mold preparation: Use high-precision, high-strength metal molds (usually steel molds), and the mold cavity determines the shape, mesh size, thickness, etc. of the grating.
Material laying: The mixed resin mixture (containing resin, initiator, accelerator, filler, etc.) and the cut glass fiber mat/cloth are alternately laid in the lower mold cavity of the mold. Precisely control the resin content and fiber distribution.
Mold closing and pressurization: The press knife is pressed down, applying a certain pressure (one of the core features of molding) and temperature (usually heating is required). The pressure allows the resin to fully infiltrate the fiber, expel bubbles, and compact the material.
Curing and molding: The resin undergoes a cross-linking reaction and solidifies at the set temperature and pressure for a period of time.
Demolding and trimming: After the curing is completed, the mold is opened, the molded grid plate is taken out, and necessary post-processing such as trimming and grinding is performed.
Post-curing (optional): Sometimes additional post-curing treatment is performed to increase the degree of complete curing.
Process characteristics:
Accurate size and good surface quality: The mold ensures shape and size accuracy, and the surface is smooth or has a designed anti-slip texture.
High production efficiency: Suitable for mass production.
Excellent mechanical properties: Pressure molding allows the fiber to be more fully infiltrated, the product has high density, and good strength and stiffness.
Strong designability: grilles and special-shaped parts (such as stair treads, cover plates, tree grates, etc.) of various sizes, thicknesses, and grid shapes can be easily produced through molds.
Main Features And Advantages
Excellent corrosion resistance: It can withstand most chemical media and harsh environments such as acids, alkalis, salts, solvents, seawater, and humidity. It will not rust or corrode, and has a long service life (usually more than 20 years). It is the first choice in the fields of chemical industry, ocean, and sewage treatment.
Lightweight and high strength: The density is only about 1/4 of steel and about 2/3 of aluminum, but the strength is close to that of ordinary carbon steel. It is easy to transport, install, and cut, reducing the load of the supporting structure and the installation cost.
Excellent anti-slip performance: The molding process can accurately produce various convex or sand surface anti-slip effects (usually the surface is covered with a sand-containing resin-rich layer), which can provide a safe and reliable walking surface even in oily and humid environments.
Good insulation performance: Excellent electrical insulation, no electromagnetic induction, suitable for substations, electromagnetic sensitive areas, flammable and explosive places.
Flame retardant: Different levels of flame retardant requirements (such as ASTM E-84 Class 1) can be achieved by selecting flame retardant resins to improve fire safety.
Maintenance-free and long life: No need for regular anti-corrosion coating like steel, almost no maintenance, and low comprehensive use cost.
Good fatigue resistance: Stable performance under long-term dynamic load.
Good design flexibility: Customizable colors (commonly used yellow, green, gray, red, etc.), size, shape, thickness, grid size (such as 38x38mm, 50x50mm) can be designed according to needs.
Safety and environmental protection: No harmful substances are released during production and use (comply with RoHS requirements, etc.), and can be recycled.
Comparative advantages with traditional Grating materials vs steel Grating:
corrosion-resistant (no maintenance required), lightweight (saving installation effort and cost), insulation, better anti-slip properties (especially in slippery environments), non-magnetic, and long life (in corrosive environments).
vs aluminum grille: corrosion-resistant (especially alkali-resistant), higher strength, usually lower cost, and insulation.
vs wood grille: corrosion-resistant, insect-proof, flame-retardant, high strength, long life, and maintenance-free.
vs concrete: lightweight, fast installation, strong designability, impact resistance (not easy to break), and insulation.
Application Fields (Used for the production of the following fiberglass molded gratings)
Petrochemical: Platforms, walkways, equipment platforms, trench covers, fences, stair treads (special design required).
Offshore platforms and ships: decks, gangways, walkways, helicopter platforms, mooring platforms.
Sewage treatment/water treatment: operating platforms, walkways, covers, aeration tanks, maintenance channels, biofilters.
Power: substation grid plates, cable trench covers, insulating walkways, cooling tower platforms.
Papermaking: walkways, platforms, bleaching towers in wet and corrosive environments.
Metallurgical mines: pickling workshops, electroplating workshops, beneficiation platforms, sieve plates (specific types).
Food and beverage: production workshop platforms, equipment platforms, and cleaning area walkways that meet hygienic requirements.
Transportation: bridge sidewalks, maintenance roads, train/subway platform walkways.
Municipal construction: pedestrian overpasses, green belt tree grates, ditch covers, car wash grilles.
Electronics: clean workshop elevated floors (specific types), anti-static areas.
Others: industrial plants, commercial buildings (such as shopping mall rooftops), agricultural breeding, zoo fences/pedalboards, etc.
Precautions For Purchase And Use
Clear requirements: Determine the use environment (corrosive media, temperature, humidity), load requirements (uniformly distributed load, concentrated load), mesh size, thickness, surface treatment (anti-slip requirements), color, flame retardant grade, electrical performance requirements, etc.
Resin type: Select according to the corrosive environment (polyester, vinyl ester).
Thickness: directly affects the load-bearing capacity.
Grid size: affects the through-hole rate and the requirements for falling object protection.
Load-bearing bar height/section: determines the main load-bearing capacity (commonly used 25mm, 38mm, 50mm high).
Barcol hardness: reflects the degree of curing and surface wear resistance.
Correct installation: Use matching FRP or metal (need to be isolated) fasteners (clips, U-shaped nails, bolts, etc.), ensure that the support spacing meets the design requirements, and pay attention to protection (dust) when cutting.
Maintenance: Although maintenance-free, regular cleaning (clean water or mild detergent) helps maintain appearance and service life. Avoid long-term heavy impact or extreme high temperature (exceeding the thermal deformation temperature of the resin).
FRP molded grating has demonstrated strong competitiveness and irreplaceability in many industrial, municipal and commercial fields due to its unique composite material properties (corrosion resistance, light weight and high strength) and advanced compression molding process (precise size, excellent performance, flexible design). It solves the pain points of traditional materials in terms of corrosion, insulation, lightweight, safety and anti-slip, and maintenance costs. It is an efficient, safe, durable and economical long-life solution. With the continuous advancement of material technology and processes, its application prospects will be broader.
Resin Type
Complete equipment for manufacturing fiberglass molded grilles

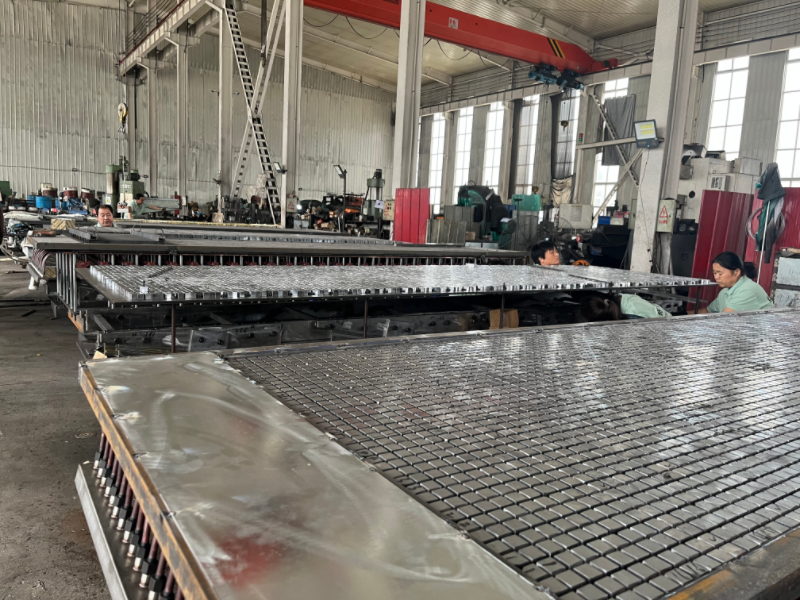

It is the core equipment for producing FRP Grating. It is usually made of high-quality steel material and electroplated with hard chrome. It has the characteristics of high precision, easy demoulding, fast heating, stable operation, and environmental protection. The copper pipe is laid under the mold for heating. The cylinder stroke makes the I-beam move up and down, so that the ejector pins act up and down. The ejector pins are reasonably distributed and the grille plate is easy to eject.
It is used to mix and stir unsaturated resin, stone powder, aluminum hydroxide, color paste, curing agent and other raw materials in a certain proportion, so that various materials are fully and evenly mixed together to form a mixed slurry for making fiberglass grating.
The mold is provided with hot water for heating, and the mold is indirectly heated through the copper tube under the mold, so that the mixture is solidified and formed in the mold. The heating temperature is generally controlled at around 50-75℃.

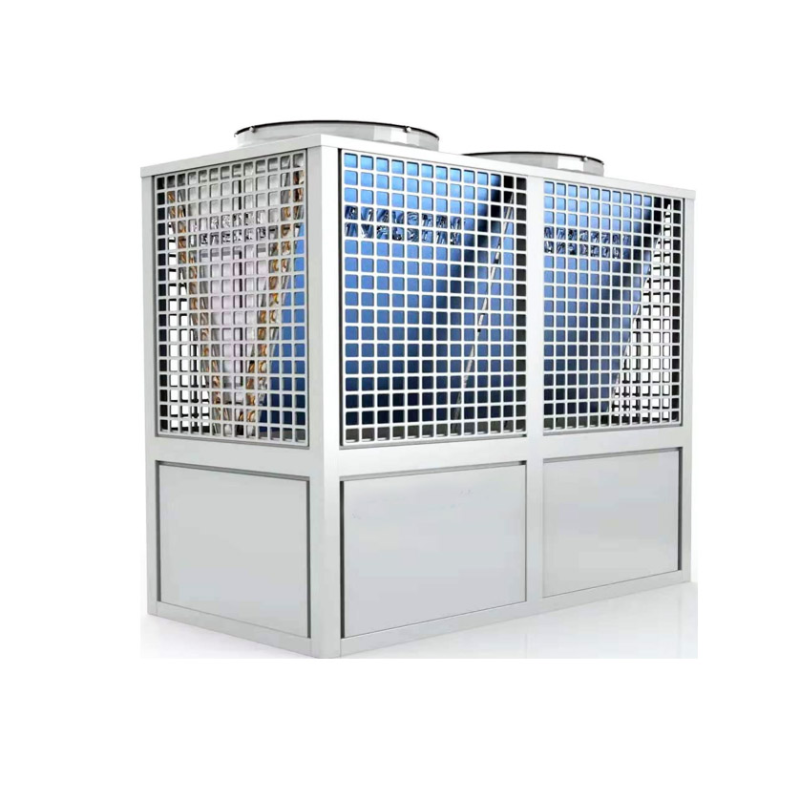

Including equipment such as heat pumps, water heaters and water pumps, the water is heated by the water source heat pump to form a hot water circulation system, providing a stable heating source for the mold and achieving water bath heating and curing. Compared with the traditional electric water heater heating method, it is more energy-efficient.
After the FRP grating is solidified, it is used to cool the mold, so that the grating can be quickly cooled down and easy to demould. The cooling water is recycled and not discharged.
It is used to grind the surface of FRP grating, remove burrs and unevenness, make the surface of the grating smooth and flat, and improve the appearance quality and performance of the product.
Provide hydraulic power to the grille mold so that the mold can perform actions such as ejection.
